Electronic Torque Wrench

Engineered to outperform, Fusion puts three industry-first innovations, professional-grade precision, and premium performance in the palm of your hand.

 Coming soon

Electronic Torque Wrench

Engineered to outperform, Fusion puts three
industry-first innovations, professional-grade precision,
and premium performance in the palm of your hand.

Coming soon

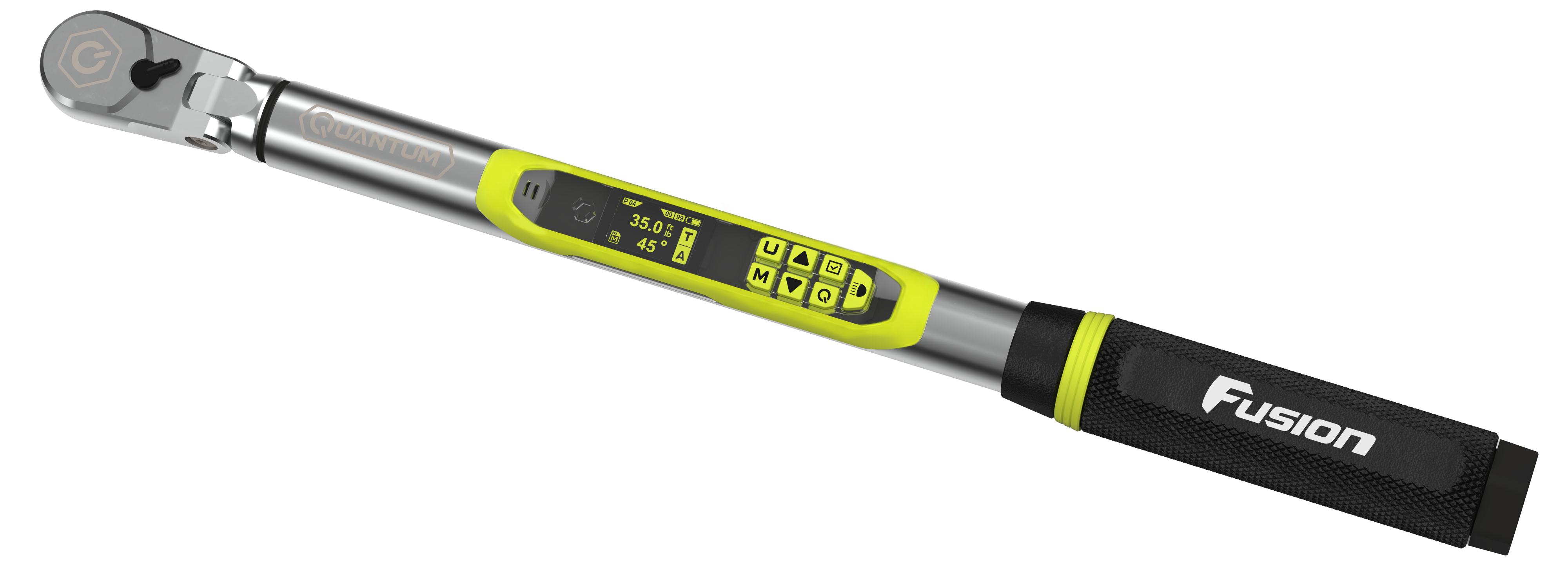

Fusion electronic torque wrench with color display

Our most advanced torque wrench leaves everything else behind. With three industry firsts – Q-Beam integrated headlight, Q-Guard smart overload protection, and Q-View color TFT display – Fusion puts distance between itself and every other torque wrench on the market.

Experience 360 degrees of separation.

INVITES

COMPARISON.

NEVER

COMPROMISES.

Experience 360 degrees of separation.

Our most advanced torque wrench leaves everything else behind. With three industry firsts – Q-Beam integrated headlight, Q-Guard smart overload protection, and Q-View color TFT display – Fusion puts distance between
itself and every other torque wrench on the market.

Invites
comparison.Never
compromises.

Features

Push the limit Fusion is the only wrench that protects itself, so you can focus on the job. Q-Guard combines software to continuously monitor applied torque with a mechanical stop to avoid damage to the sensor.

Q-Guard smart overload protection.

Seeing is achieving. With the push of a button, Fusion shines a light on whatever you’re working on, whenever you need it. Q-Beam is the first integrated LED lamp on a standard torque wrench. Talk about a bright idea.

Q-Beam integrated headlight.

Precision on display. Q-View puts everything you need to run the tool on an advanced color TFT panel. More than a display, it’s a command center. Set your torque. Track your progress. Scale dynamically. Activate angle mode without zeroing. Monitor Q-Guard. Manage it all right from the control panel.

Q-View color TFT display.

Features

Q-Guard activated

Q-Guard smart overload protection.

Push the limit
Fusion is the only wrench that
protects itself, so you can focus on the job. Q-Guard combines software to continuously monitor applied torque
with a mechanical stop to avoid
damage to the sensor.

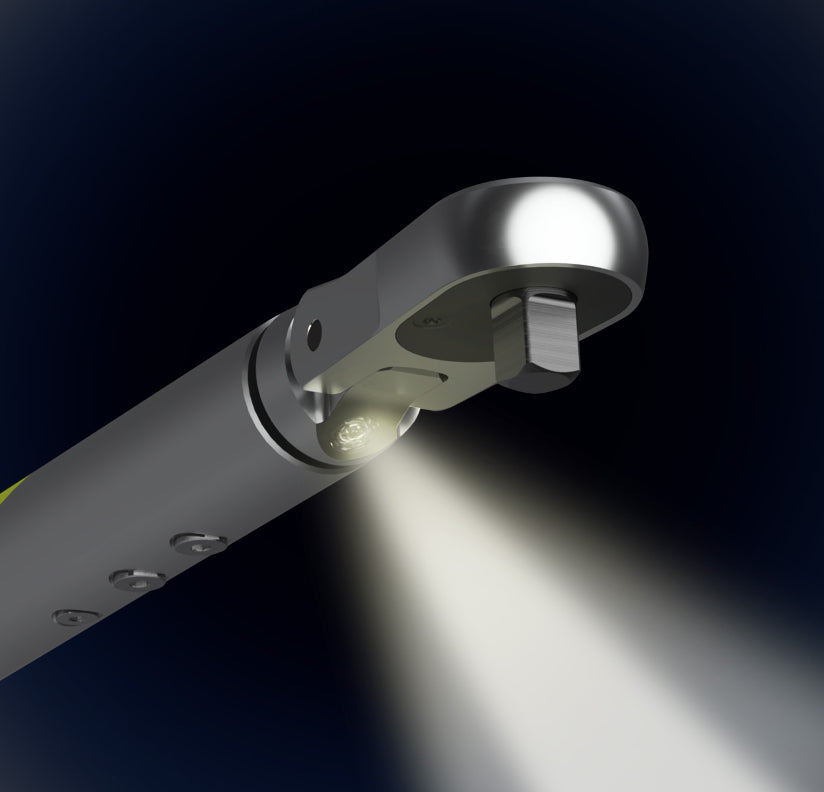

Q-Beam illuminates the work area from the wrench head

Q-Beam integrated headlight.

Seeing is achieving.
With the push of a button, Fusion shines
a light on whatever you’re working on, whenever you need it. Q-Beam is the first integrated LED lamp on a standard torque wrench. Talk about a bright idea.

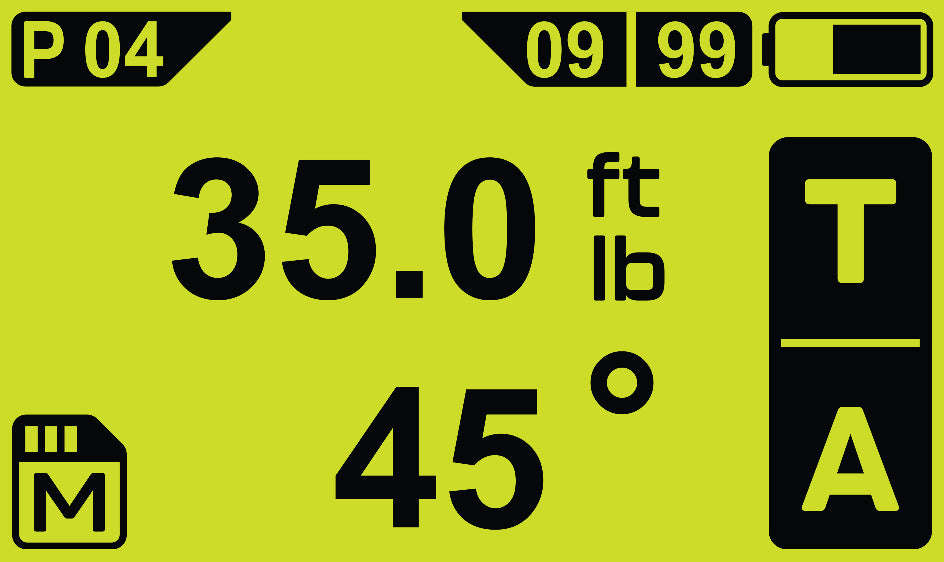

Q-View color TFT display showing torque and angle

Q-View color TFT display.

Precision on display.
Q-View puts everything you need to run the tool on an advanced color TFT panel. More than a display, it’s a command center. Set your torque. Track your progress. Scale dynamically. Activate angle mode without zeroing. Monitor Q-Guard. Manage it all right from the control panel.

Get a grip on

Fusion.

72-tooth low profile ratchet head

15° stop high strength flex joint

Reversing lever

Drive side LED headlight

Heat-treated steel tube

Buzzer

Progress LED’s green/yellow/red

Mode

Up/Down

Power

Unit

Menu/Select

Q-Beam

Wide, knurled non-slip grip

Non-marring cap (Brass contacts)

Preset

Memory

Batch

Battery Level Indicator

Torque/Angle

Get a grip on
Fusion.

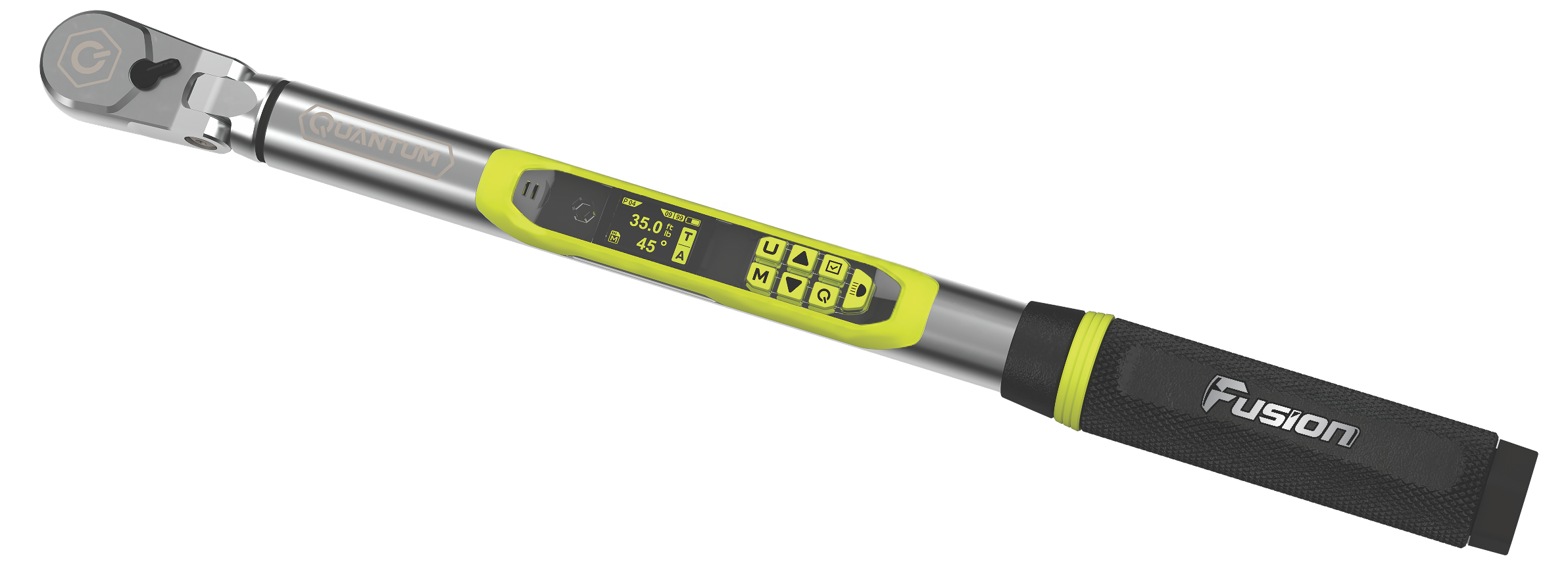

Fusion wrench, from low-profile ratchet head to non-slip grip
  • 72-tooth low profile ratchet head
  • 15° stop high strength flex joint
  • Reversing lever
  • Drive side LED headlight
  • Heat-treated steel tube
  • Buzzer
  • Progress LEDs: green/yellow/red
  • Mode, power, unit, up/down, menu/select, and Q-Beam controls
  • Wide, knurled non-slip grip
  • Non-marring cap (brass contacts)
  • Preset, memory, and batch indicators
  • Battery level indicator and torque/angle display

Specifications

Specifications

Fusion model dimensions and torque ranges
Catalog
Number		Square
Drive Inch		Torque RangeLength
(Inches)		Weight w/o
Batteries (lbs)
Digital Primary ScaleDigital Secondary Scale
ft-lbin-lbNmKg-cmKg-m
QF2100FABG3/8”5.0-100.060-12006.8-135.669-13820.7-13.818.252.28
QF2125FABG*3/8”5.0-125.060-15006.8-169.569-17280.7-17.318.252.28
QF3250FABG1/2”12.5-250.0150-300016.9-339.0173-34561.7-34.630.04.23
QF3300FABG*1/2”15.0-300.0180-360020.3-406.7210-41482.1-41.530.04.23

Built around the way you work.

Performance and features.

Feedback and alerts.

Angle Range: 0-360°

Cycle counter

Batch counter

10 presets

100 memory positions

Adjustable sleep timer

Auto-torque calculation for torque adapters

Set date/time

6 units of measure

4 modes - Peak Torque, Angle, Peak Torque + Angle, Rolling Torque

Four configurable alert modes: color TFT, LED indicators, audible beep, handle vibration

Dual progressive LEDs display real-time torque and angle progression

Calibration alert and intervals: 6/12 months or 5000/10000 cycles

Battery level indication

Extended range units meeting ASME B107.300-2021

Torque-then-Angle mode for angle rotation following application of target torque, without removing the tool from the fastener

Angle accuracy: ±1% of reading, ±1° at angular velocity > 10°/sec < 180°/sec: ±1° for test fixture

What’s in the box.

Custom-molded storage box

Three AA alkaline batteries

Calibration certificate

User manual

QF3300FABG includes ¾” adapter

Color TFT provides superior visibility, with high contrast and brightness display options for all lighting conditions. Dynamic scaling and color enhancement further improve visibility during active measurement

Torque accuracy: • ±2% CW, ±3% CCW, 20% to 100% of full scale

• ±4% CW, ±6% CCW, 5% to 19% of full scale (4% to 19% of full scale for 125 ft-lb models)

Use Rolling Torque mode to set or verify bearing preload by measuring the average and peak torque required to maintain rotation

 DOWNLOAD BROCHURE READ USER MANUAL GET SPARE PARTS

Built around the
way you work.

Performance and features.

  • Extended range units meeting ASME B107.300-2021
  • Color TFT provides superior visibility, with high contrast and brightness display options for all lighting conditions. Dynamic scaling and color enhancement further improve visibility during active measurement
  • Torque-then-Angle mode for angle rotation following application of target torque, without removing the tool from the fastener
  • Use Rolling Torque mode to set or verify bearing preload by measuring the average and peak torque required to maintain rotation
  • Torque accuracy:
    • ±2% CW, ±3% CCW, 20% to 100% of full scale
    • ±4% CW, ±6% CCW, 5% to 19% of full scale (4% to 19% of full scale for 125 ft-lb models)
  • Angle accuracy: ±1% of reading, ±1° at angular velocity > 10°/sec < 180°/sec: ±1° for test fixture
  • Angle Range: 0-360°
  • Cycle counter
  • Batch counter
  • 10 presets
  • 100 memory positions
  • Adjustable sleep timer
  • Auto-torque calculation for torque adapters
  • Set date/time
  • 6 units of measure
  • 4 modes - Peak Torque, Angle, Peak Torque + Angle, Rolling Torque

Feedback and alerts.

  • Four configurable alert modes: color TFT, LED indicators, audible beep, handle vibration
  • Dual progressive LEDs display real-time torque and angle progression
  • Calibration alert and intervals: 6/12 months or 5000/10000 cycles
  • Battery level indication

What’s in the box.

  • Custom-molded storage box
  • Three AA alkaline batteries
  • Calibration certificate
  • User manual
  • QF3300FABG includes ¾” adapter
DOWNLOAD BROCHURE READ USER MANUAL GET SPARE PARTS
